WATER FILTERS
MULTIGRADED SAND FILTER & ACTIVATED CARBON FILTER

TECHNICAL SPECIFICATIONS

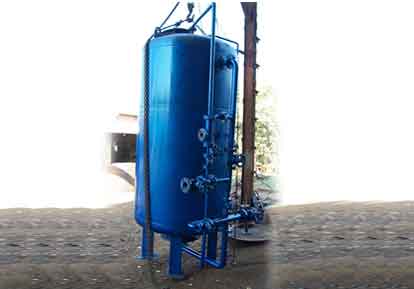

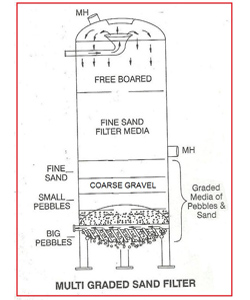

Sand Filters

  • Consist of multiple layers of coarse & fine Sand, Pebbles and Gravels.
  • Reduces Turbidity and TSS.
  • Manual & Automatic operation options
  • MOC : FRP, SS ,MS
  • Flow Capacity ranging up to 250m3/hr.
  • Frontal piping work with Multi Port Valve for easy operation and control

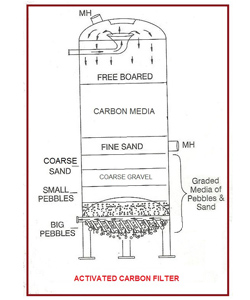

CARBON FILTERS

  • Consists of Carbon activated by steam or chemical method which acts as Adsorbent.
  • Removes Colour, Odour & Free Chlorine
  • Manual & Automatic operation options
  • MOC : FRP, SS ,MS
  • Flow Capacity ranging up to 250m3/hr.
  • Frontal piping work with Multi Port Valve for easy operation and control.
OPERATION

  • Raw Water is passed through filter media Impurities in the water are trapped in the media bed Backwashing for removal of deposited impurities from the media bed Rinsing with raw water.

APPLICATIONS

  • Drinking Water, River Water, Ground Water, Waste Water, Cooling Tower & Process Water Treatment.
  • Pre-treatment for Industrial WTP, Mineral water bottling plants, RO plants etc.
